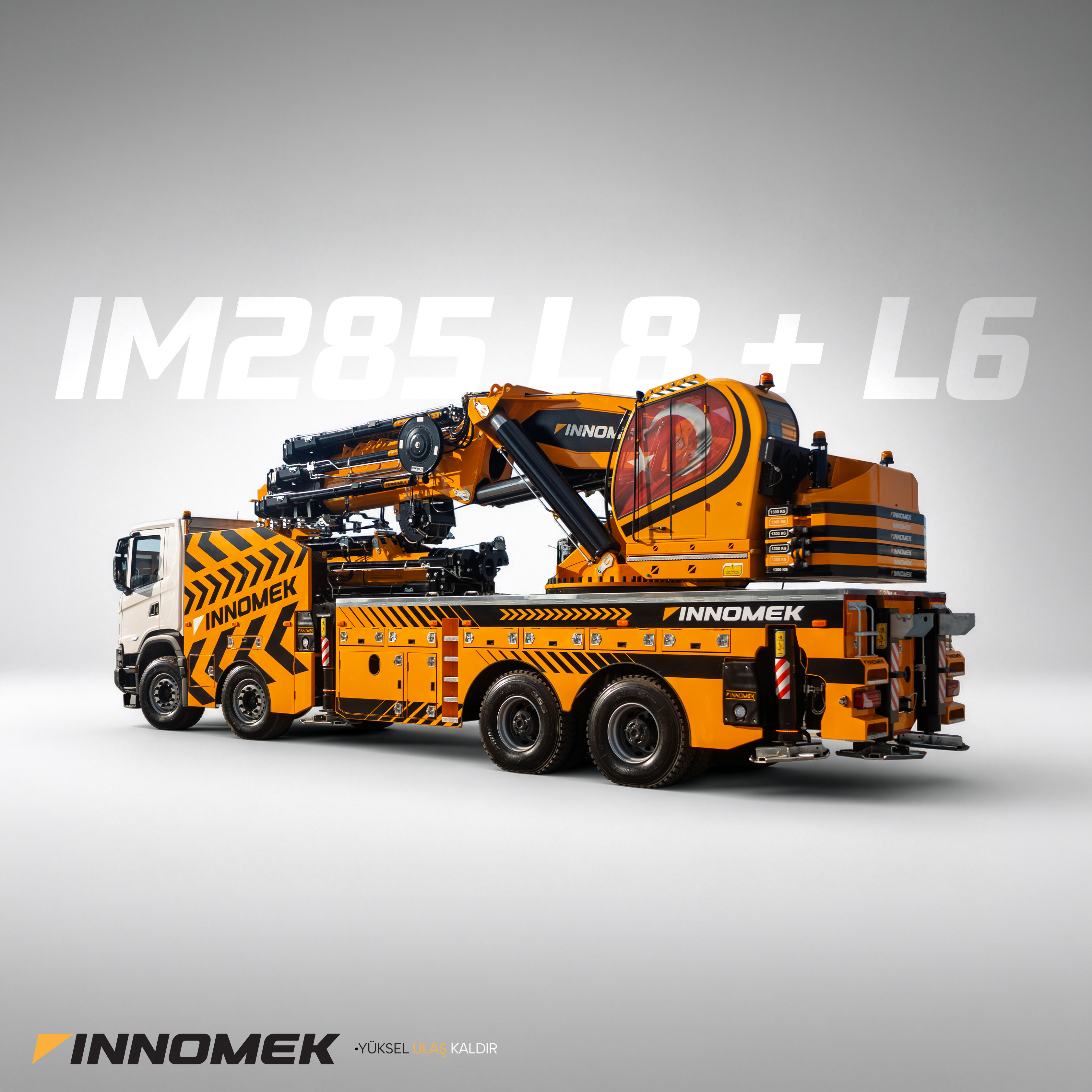

IM 285
L8+L6 telescopic boom and 4.5 t winch drum lift up to 95 t at 51.65 m reach, under full control. Built on chassis.
- Capacity
- 95tseries max. 95 t
- Reach
- 51.65mseries max. 51.65 m
- Main boom
- 30.5mseries max. 30.5 m
- 01Flagship of the series · highest capacity and reach
- 02L8+L6 telescopic boom, 4.5 t winch drum
- 03Designed for the heaviest recovery operations
IM 285 at a glance.
- Boom configuration
- L8+L6
- Lifting capacity
- 95 t
- Max. reach
- 51.65 m
- Main boom
- 30.5 m
- Winch drum
- 4.5 t
- Chassis
- Family
- Truck-Mounted Cranes
- Status
- Available
Capacity and reach values are indicative. Full technical data in the product datasheet.
IM 285 in short.
The IM 285 is a truck-mounted superstructure in the Truck-Mounted Cranes product family: 95 tonnes of lifting capacity, 51.65 m of maximum reach, L8+L6 telescopic boom.
The IM 285 is designed to lift loads of up to 95 tonnes. It works with a 4.5 t winch drum.
The maximum reach of the IM 285 is 51.65 m and its main boom measures 30.5 m.
The IM 285 belongs to the Truck-Mounted Cranes product family. High-capacity truck-mounted crane systems with folding telescopic booms.
The IM 285 is built with the L8+L6 telescopic boom configuration. This configuration provides a 30.5 m main boom and 51.65 m of maximum reach.
The IM 285 uses a 4.5 t winch drum.
Flagship of the series · highest capacity and reach; L8+L6 telescopic boom, 4.5 t winch drum; Designed for the heaviest recovery operations.
The IM series consists of 6 models covering 30-95 tonnes of capacity; the IM 285 sits at 95 tonnes. It is the highest-capacity model in the series.
